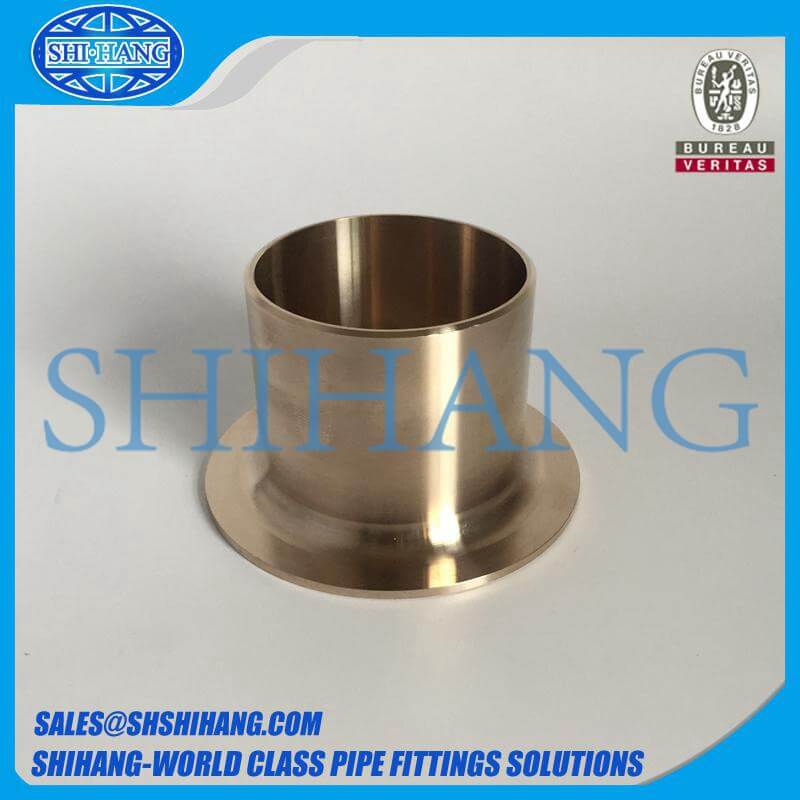

Copper Nickel Stub End

A stub ends are the industry norm and are utilized with standard flat face lap joint flanges. The lap thickness of the stub end typically meets the thickness of the schedule pipe it accompanies

CONTACT US

Specification

Grade:Astm B466 UNS C70600 , 7060X,CuNi 90/10,CuNiFer,CuNi10fe1.6mn

Astm B466 UNS C71500 , CuNi 70/30,CuNiFer,CuNi30fe1.6mn

Standard:ASME B16.9
Thickness:SCH 5 , SCH 10 , SCH 40 , SCH 80

Product Showcase

Copper Nickel C70600 Stub End Dimensions

ASME B16.9 LAP JIONT STUB END

nominalD FFRG
mmmmLong PatternShort Pattern
inchMax.Min.mmmmmmmm
0.522.820.57651335
0.7528.125.97651343
13532.610251351
1.2543.641.410251564
1.549.947.510251673
262.459.515264892
2.575.372.2152648105
391.388.11526410127
3.5104100.81527610140
4116.7113.51527611157
5144.3140.52037611186
6171.3167.52038913216
8222.1218.320310213270
10277.2272.325412713324
12328323.125415213381
14359.9354.830515213413
16411405.630515213470
1846245630515213533
2051450730515213584
2256555830515213641
2461660930515213692

Chemical Composition

1\Comparison table of International Standard Specifications for CuNi 90/10

 DIN 86019
2.1972
EEMUA 144
UNS 7060X
BS 2871
CN 102
ASTM B466
C70600
JIS H 3300
C7060
MIL-T-16420K
C70600
Ni%9.0-11.010.0-11.010.0-11.09.0-11.09.0-11.09.0-11.0
Fe%1.5-1.81.5-2.01.0-2.01.0-1.81.0-1.81.0-1.8
Mn%0.5-1.00.5-1.00.5-1.0Max.1.00.2-1.0Max1.0
C%Max.0.05Max.0.05Max.0.05Max.0.05 Max.0.05
Pb%Max.0.03Max.0.01Max.0.01Max.0.02Max.0.05Max.0.02
S%Max.0.015Max.0.02Max.0.05Max.0.02 Max.0.02
P%Max.0.02Max.0.02 Max.0.02 Max.0.02
Zn%Max.0.15Max.0.20 Max.0.50Max.0.50Max.0.05
Zr%Max.0.03
OthersMax.0.30Max.0.30Max.0.30
Cu%BalanceBalanceBalanceBalanceCu+Ni
+Fe+Mn
Min.99.5
Min.86.5

2\Comparison table of International Standard Specifications for CuNi 70/30

Column 0DIN 17664
2.0882
BS 2871
CN 107
ASTM 466
C71500
JIS H 3300
C7150
NES
780
MIL-T-16420K
C71500
Ni%30.0-32.030.0-32.029.0-33.029.0-33.030.0-32.029.0-33.0
Fe%0.4-1.00.4-1.00.4-1.00.4-1.00.6-1.00.4-1.0
Mn%0.5-1.50.5-1.5Max.1.00.2-1.00.5-1.5Max.1.0
C%Max.0.05Max.0.06Max.0.05Max.0.06Max.0.05
Pb%Max.0.03Max.0.01Max.0.02Max.0.05Max.0.01Max.0.02
S%Max.0.02Max.0.08Max.0.02Max.0.02Max.0.02
P%Max.0.02Max.0.02Max.0.01Max.0.02
Zn%Max.0.5Max.0.50Max.0.50Max.0.50
Others Max.0.30 Max.0.30 Max.0.50Max.0.30Max.0.50
Cu%BalanceBalanceBalanceCuNi+Fe+Mn
Min.99.5
Min.66.5Min.65.0
